How to Use the Service Catalog Demo

This guide demonstrates the complete service delivery workflow through two user perspectives: requesting services through the catalog and managing them through Infrahub. You'll see how automated provisioning transforms service requests into fully configured network services.

Need help or have questions? Join our Discord community for support!https://discord.gg/opsmill

Prerequisites​

Before starting, ensure you have:

  • Completed the installation guide
  • Both services running:
    • Service Catalog at http://localhost:8501
    • Infrahub at http://localhost:8000

Understanding the workflow​

The demo simulates a typical enterprise service delivery process:

  1. Service Request: Customer/engineer requests a service through self-service portal
  2. Automatic Processing: Infrahub generates proposed changes with allocated resources
  3. Review & Approval: Network architect reviews and approves the implementation
  4. Resource Allocation: System automatically provisions VLANs, IPs, and configurations
  5. Service Delivery: Customer receives access details for their new service
  6. Automated Deployment: Semaphore runs Ansible playbooks to fetch generated configurations from Infrahub and deploy them to network devices
Blog posthttps://opsmill.com/blog/how-to-turn-your-source-of-truth-into-a-service-factory/

Step 1: Request a new service (service engineer role)​

Understanding the service catalog interface​

The Service Catalog provides a simplified, user-friendly interface for requesting network services without requiring deep technical knowledge.

Create a dedicated internet service request​

  1. Access the Service Catalog

    • Open your browser to http://localhost:8501
    • You'll see the main dashboard with available service types

  2. Navigate to Service Creation

    • Click on the "🔌 Dedicated Internet" card from the home page
    • Or use the sidebar navigation to go to "Dedicated Internet"

  3. Fill Out the Service Request Form

    The form presents user-friendly options that hide technical complexity:

    • Service Identifier: Choose a unique name (for example: "DI-DEMO-001")

    • Account Reference: Customer or project identifier

    • Location: Select a site within a location (for example: "Paris 1", "Brussels 1", "New York 1", "Dallas 1")

    • Bandwidth: Choose from human-readable options:

      • "Ten Gigabits" (10 Gbps)
      • "One Gigabit" (1 Gbps)
      • "Hundred Megabits" (100 Mbps)

    • IP Package: Select based on customer needs:

      • "Small" (6 usable IPs)
      • "Medium" (14 usable IPs)
      • "Large" (30 usable IPs)

  4. Submit the Request

    • Click "Submit" to create the service request
    • The system creates a new branch in Infrahub for this change

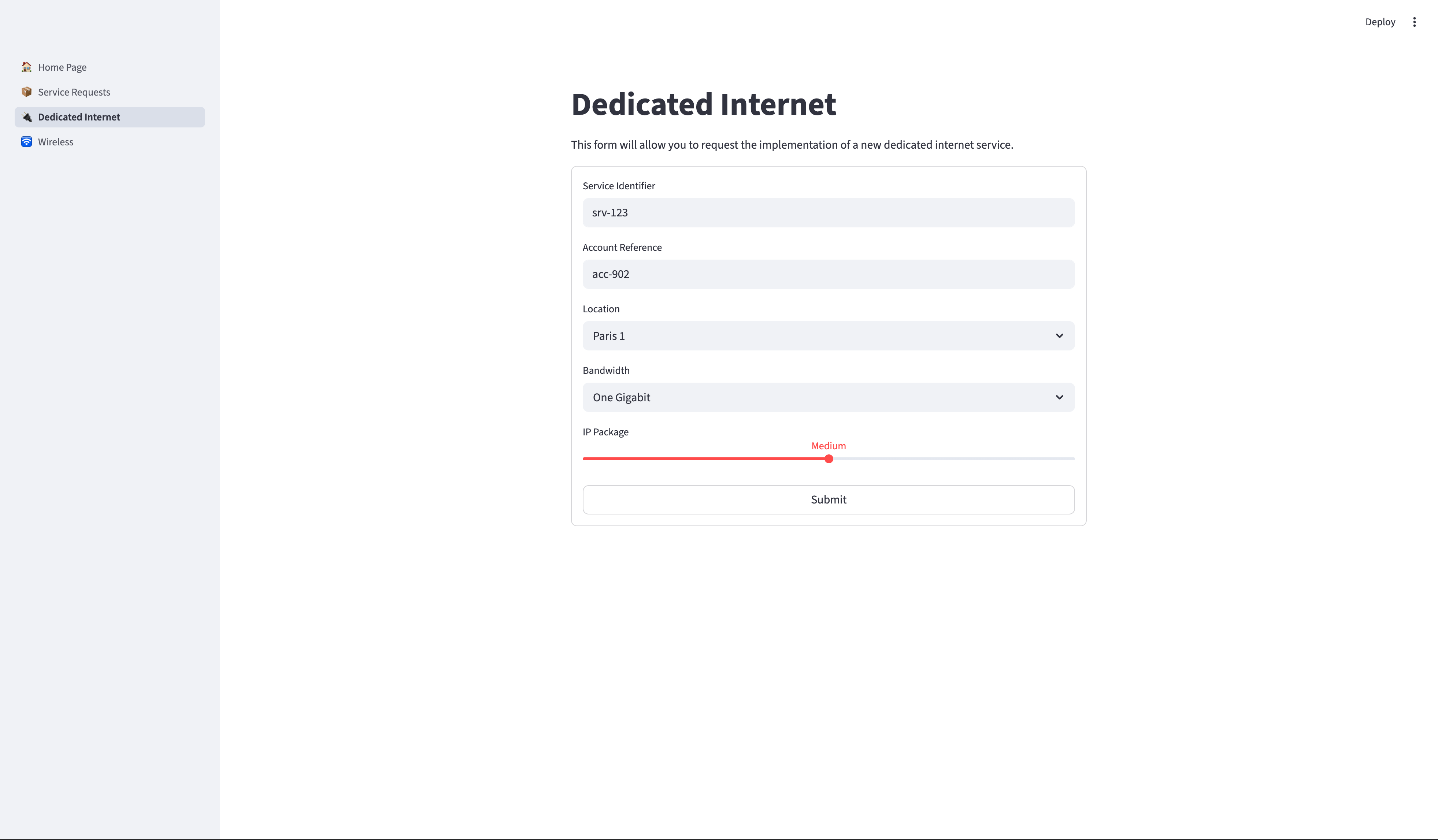

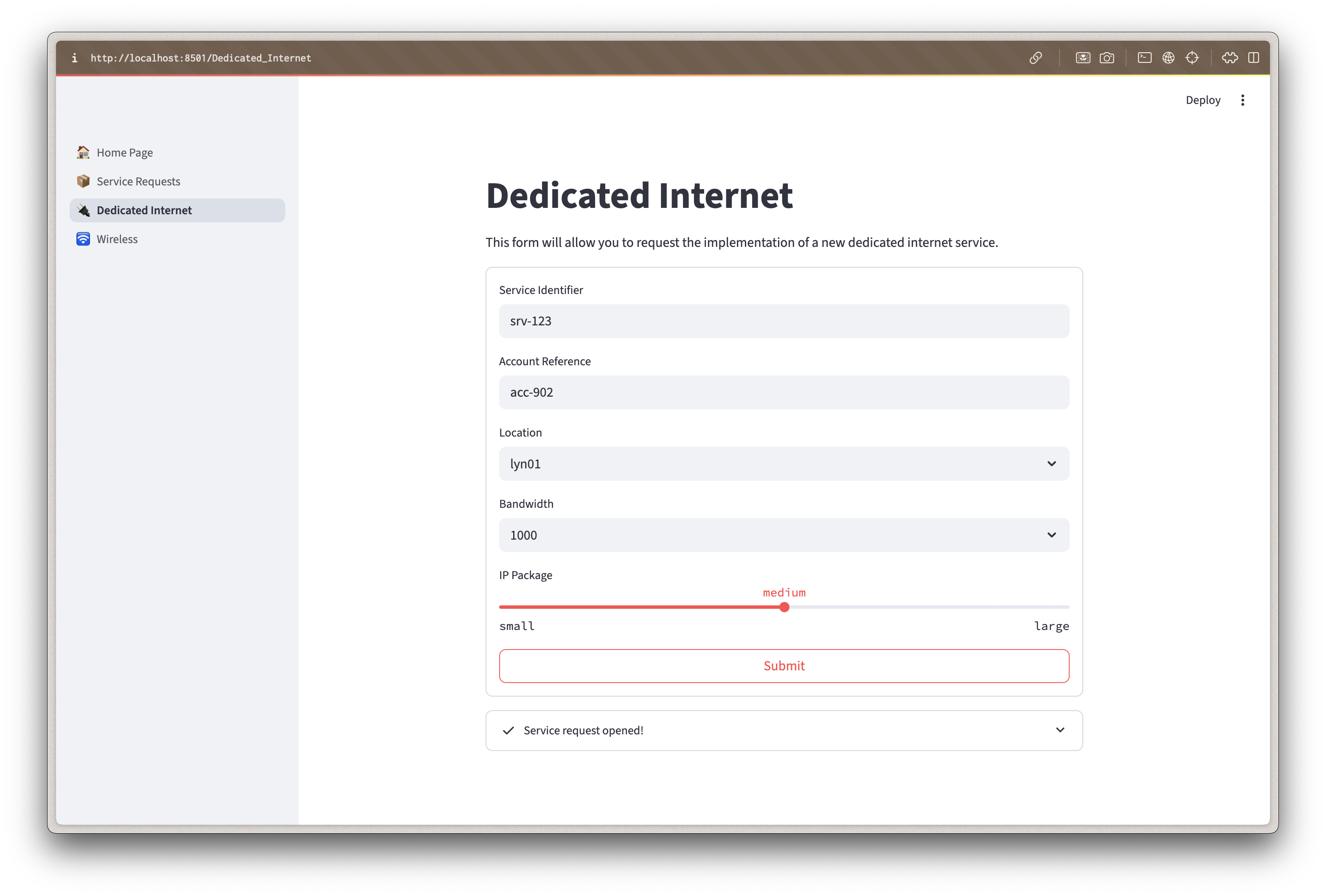

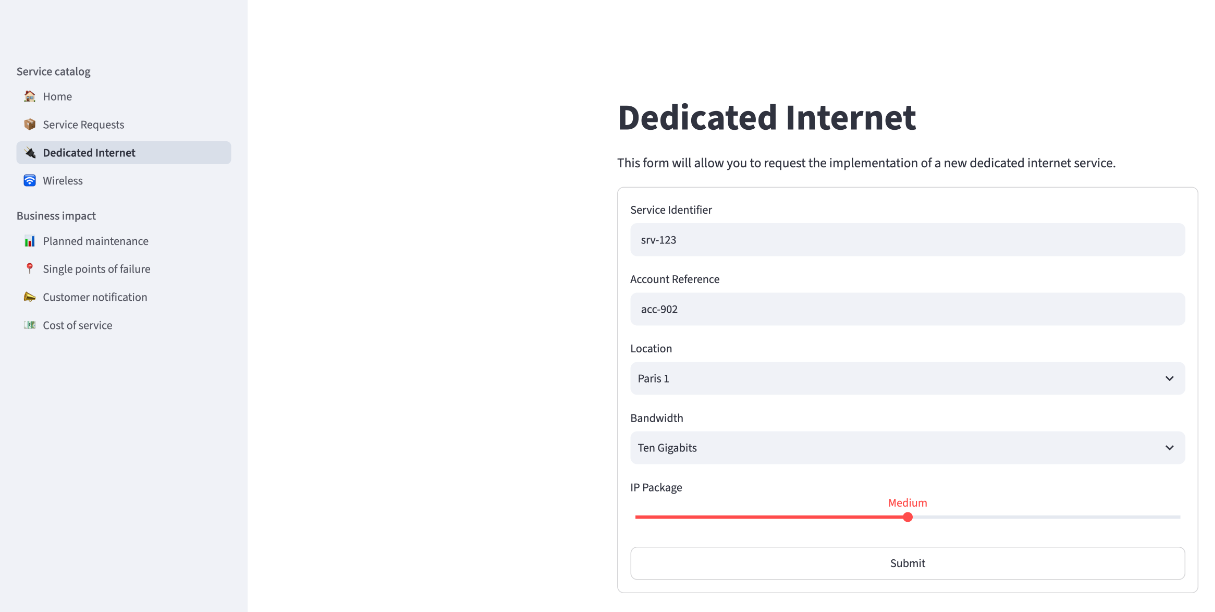

Streamlit Form

What Happens Behind the Scenes

When you submit the request:

  1. A new git branch is created in Infrahub
  2. The service object is created with "draft" status
  3. A generator is triggered to allocate resources
  4. A "Proposed Change" is created for review

Track your service requests​

  1. View All Requests

    • Select "Service Requests" under "Service catalog" in the sidebar
    • You'll see a table of all service requests with their current status

  2. Monitor Request Progress

    The table shows key information:

    • Service ID: Your unique identifier
    • Status: Current state (Draft, In Delivery, Active)
    • Location: Where the service will be deployed
    • Bandwidth & IP Package: Technical specifications
    • Account: Customer reference

  3. Understanding Status Progression

    • Draft: Initial request submitted, awaiting processing
    • In Delivery: Resources allocated, implementation in progress
    • Active: Service fully provisioned and operational

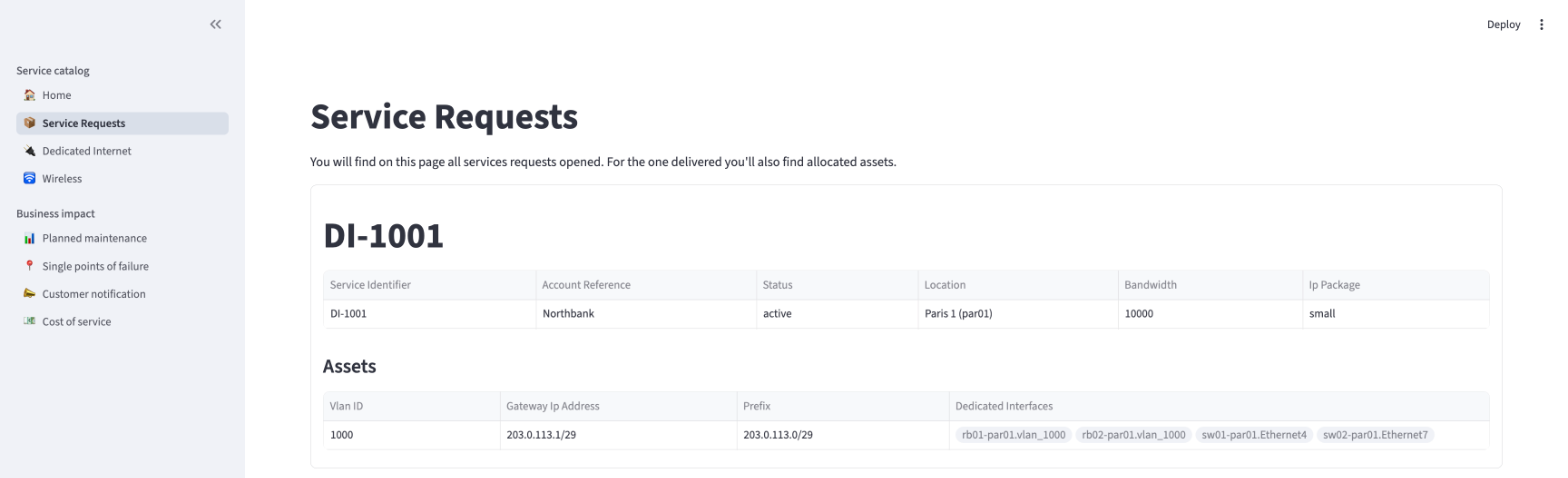

In this example, DI-1001 is active, and its assets list the VLAN, gateway IP address, prefix and dedicated interfaces that the generator allocated.

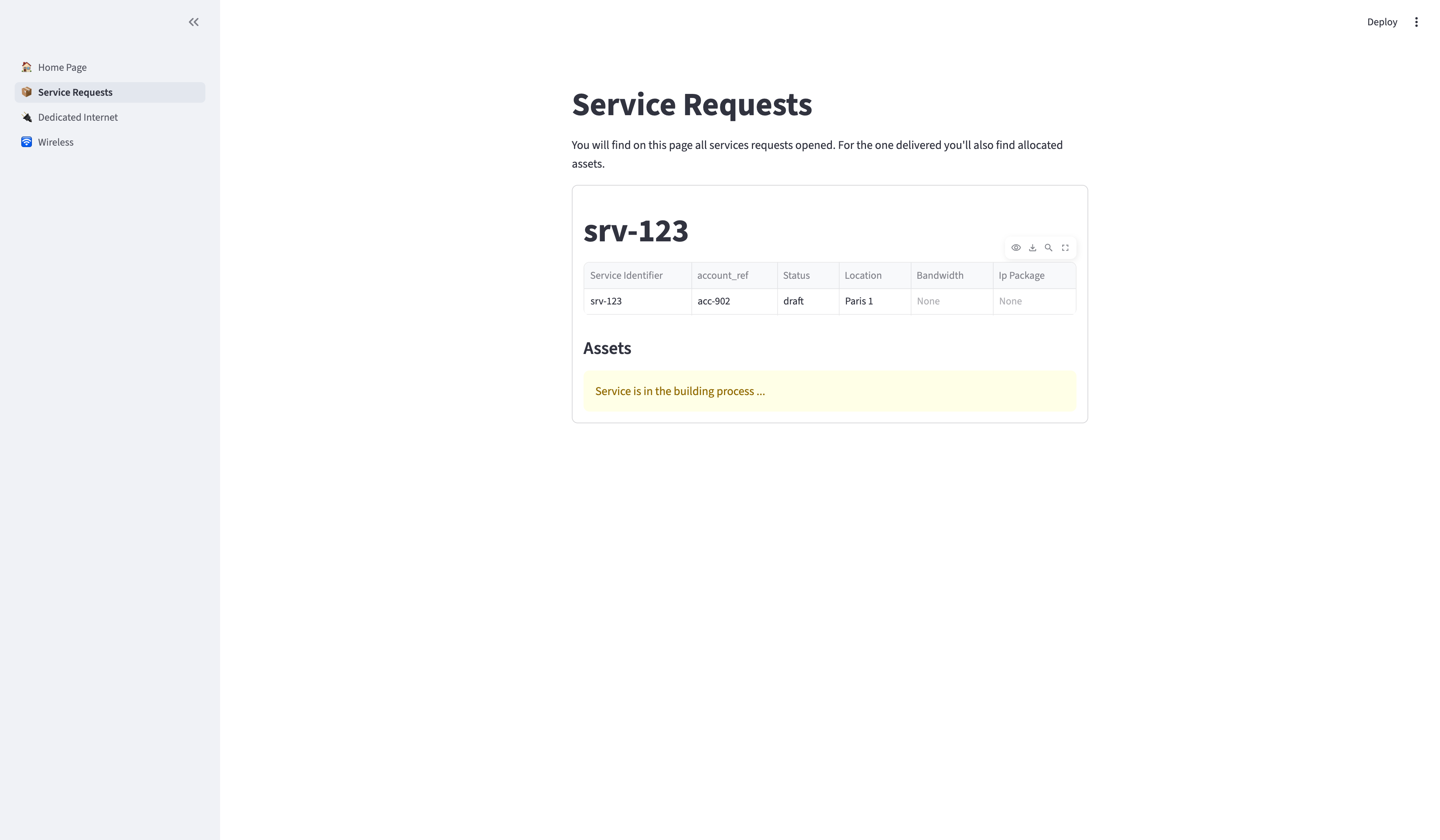

Service Requests

Why Two Interfaces?

The Service Catalog provides a simplified view for business users, while Infrahub offers detailed technical views for network engineers. This separation allows each role to work with appropriate tools.

Step 2: Review infrastructure state (network architect role)​

Understanding Infrahub's role​

Infrahub serves as the "source of truth" for your network infrastructure, maintaining detailed models of:

  • Physical locations and equipment
  • Network configurations and relationships
  • Service allocations and dependencies
  • Change history and version control

Access the Infrahub interface​

  1. Log into Infrahub

    • Navigate to http://localhost:8000
    • Username: admin
    • Password: infrahub

  2. Explore the Infrastructure Model

    The left sidebar organizes infrastructure data by category:

    Location

    • Countries, metros, and sites
    • Geographic hierarchy for service placement

    Device Management

    • Devices (switches, routers, servers)
    • Interfaces and connections
    • Hardware specifications

    IPAM (IP Address Management)

    • IP prefixes and addresses
    • VLANs and L2 domains
    • Resource pools for allocation

    Services

    • Service definitions and instances
    • Resource assignments
    • Customer relationships

  3. Examine Site Details

    • Click Location > Site to see all sites
    • Select a site (for example: "Paris 1")
    • Review the site's components:
      • Associated devices and their roles
      • Current VLAN assignments
      • Available resource pools
      • Existing services

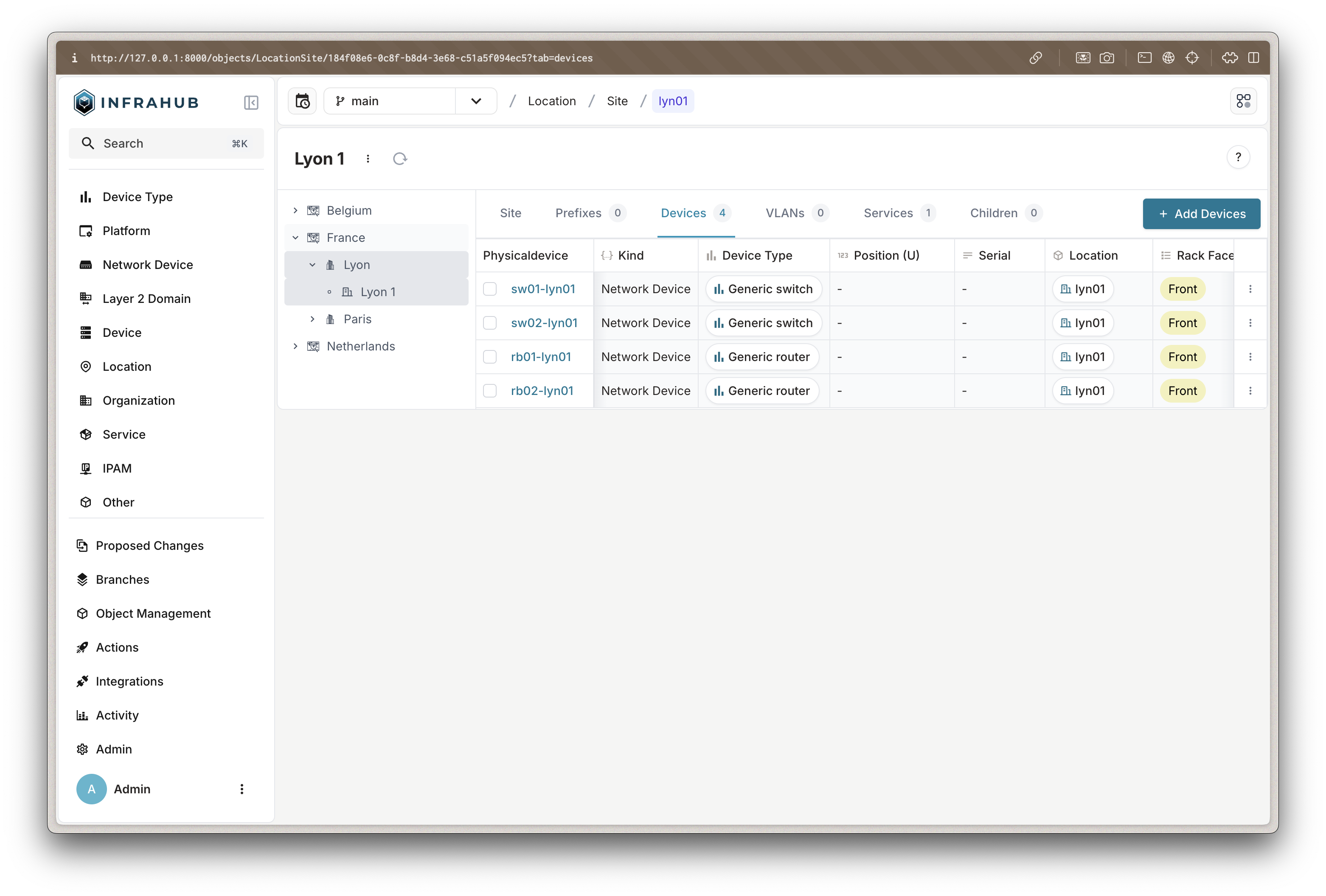

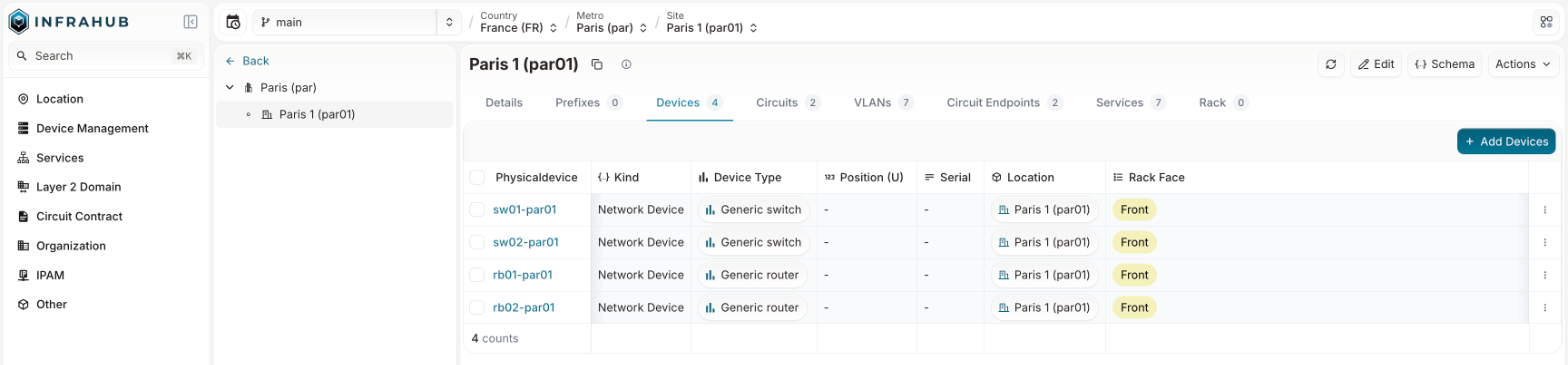

Site View

Infrastructure as Code Benefits

By modeling infrastructure in Infrahub:

  • All changes are version-controlled
  • Relationships between components are maintained
  • Resource conflicts are automatically prevented
  • Changes can be tested before implementation

Review and approve service implementation​

  1. Access Proposed Changes

    • Navigate to Proposed Changes in the left sidebar
    • You'll see the service request you created earlier
    • Each request creates a separate branch for safe testing

  2. Examine the Automated Provisioning

    Click on your service request to see detailed tabs:

    Overview Tab

    • Summary of the proposed change
    • Author and timestamp information
    • Current status and available actions

    Checks Tab

    • Automated validation results
    • Generator execution status (should show success)
    • The Gold outage guard result (should pass, because a service order sets no device out of service)
    • Any constraint violations or conflicts

    Data Tab

    • Original service request data
    • Your form inputs (location, bandwidth, etc.)
    • Service metadata and relationships

  3. Review Resource Allocation

    • Click "Refresh Diff" to see what the generator created
    • Examine the provisioned resources:

    VLAN Assignment

    New VLAN: vlan__DI-DEMO-001
    ID: 142 (allocated from pool)
    Role: customer
    Status: active

    IP Prefix Allocation

    New Prefix: 10.0.42.0/28
    Gateway: 10.0.42.1
    Usable IPs: 10.0.42.2 - 10.0.42.14

    Interface Configuration

    Switch Port: ge-0/0/5 on core-switch-1
    Speed: 1000 Mbps
    VLAN: 142 (untagged)
    Status: active

    Router Interface

    Interface: vlan_142 on edge-router-1
    IP Address: 10.0.42.1/28
    Status: active

  4. Approve the Implementation

    • Return to the "Overview" tab
    • Review the summary of changes
    • Click "Merge" to approve and implement
    • The branch merges into main, making changes live

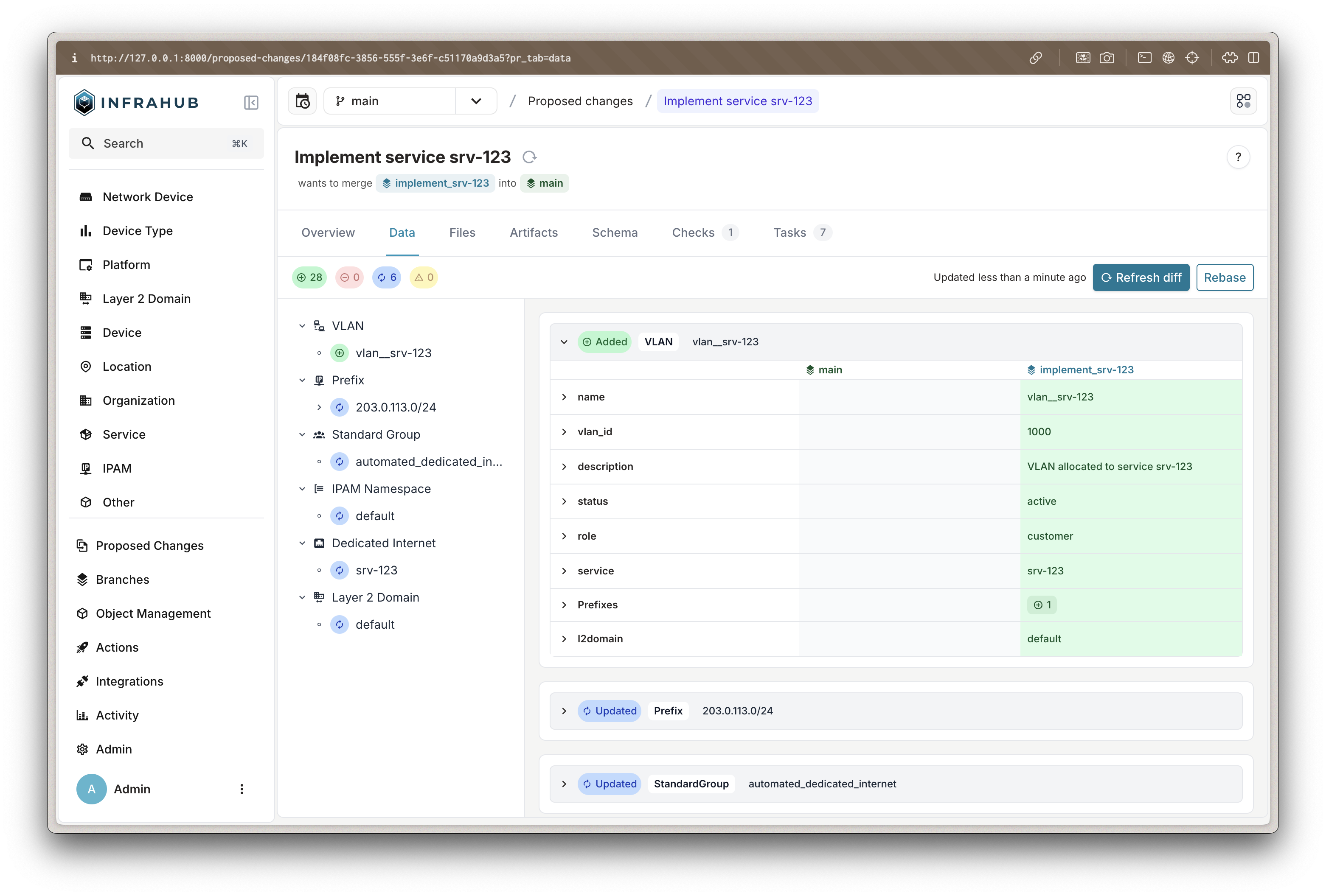

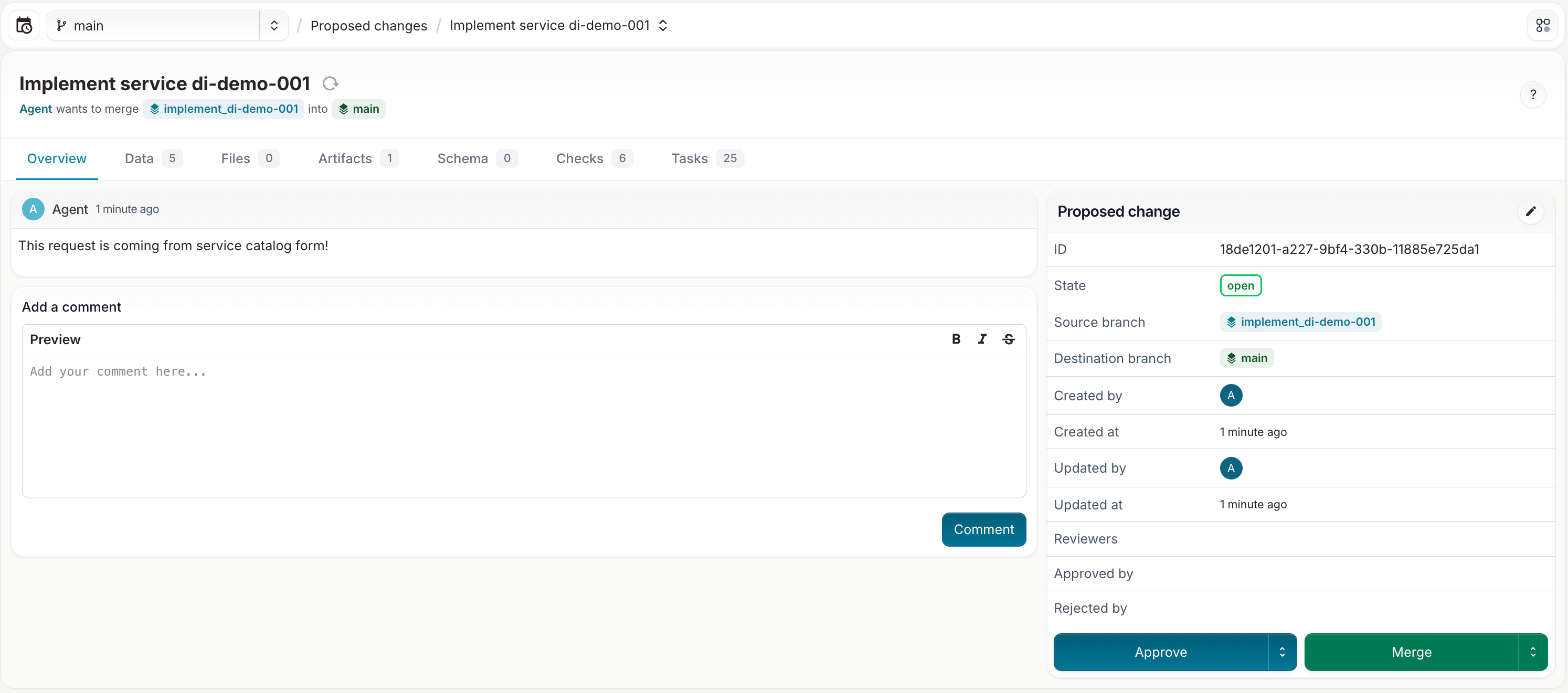

Proposed Change

Approval Workflow Benefits

This review process provides:

  • Safety: Changes tested in isolation before going live
  • Visibility: Full resource allocation visible before approval
  • Audit Trail: Complete history of who approved what and when
  • Rollback: Ability to revert changes if issues arise

Step 3: Verify service delivery​

Confirm active service​

  1. Check Service Status

    • Return to the Service Catalog (http://localhost:8501)
    • Navigate to "Service Requests"
    • Your service should now show "Active" status

  2. Review Allocated Resources

    • In Infrahub, navigate to the service under Services > Dedicated Internet
    • Click on your service to see all allocated components
    • Verify relationships to VLANs, interfaces, and IP addresses

  3. Understand the Customer Experience

    At this point, a real customer would receive:

    • Connection Details: Switch port and patch panel location
    • IP Configuration: Gateway IP, subnet mask, and usable IP range
    • VLAN Information: VLAN ID for their traffic
    • Support Contacts: Who to contact for service issues

Step 4: Deploy the configurations​

After the proposed change is merged, you can use Semaphore to deploy the generated configurations to network devices.

Access the Semaphore UI​

  1. Open Semaphore

    • Navigate to http://localhost:3000
    • Username: admin
    • Password: semaphore

  2. Locate the Deployment Task

    • Find the deployment project in the Semaphore dashboard
    • The project is configured with the deploy.yml playbook and the dynamic Infrahub inventory

Run the deployment playbook​

  1. Start a Task Run

    • Click "Run" to launch the deployment playbook
    • Semaphore uses the dynamic inventory plugin to query Infrahub for all devices and their attributes

  2. Monitor Real-Time Output

    • Watch the live output as Ansible connects to each device
    • The playbook fetches the startup-config artifact from Infrahub for each device
    • Configurations are saved locally (and in a real environment, pushed to devices)

  3. Verify Deployment Success

    • Check that all tasks complete with "ok" or "changed" status
    • Review the output for any errors or skipped hosts
    • Confirm that configuration files were generated for each device
What the Playbook Does

The deploy.yml playbook performs two tasks per device:

  1. Fetch configuration artifact: uses the opsmill.infrahub.artifact_fetch module to retrieve the startup-config artifact from Infrahub
  2. Save configuration: writes the configuration to a local file for deployment
Workflow complete

You have:

  1. ✅ Requested a service through the self-service portal
  2. ✅ Reviewed the automated resource allocation
  3. ✅ Approved the implementation as a network architect
  4. ✅ Delivered a fully configured network service
  5. ✅ Deployed configurations to network devices via Semaphore

The generator allocated every resource, and Semaphore deployed the configuration that Infrahub generated.

Step 5: Check the business impact of a change (optional)​

With the seeded data from Step 6 of the installation, the portal also shows which services have no other path during a planned change, and Infrahub blocks a plan that leaves a Gold service without one. Follow Plan maintenance that keeps Gold services in service to run it end to end. To view which Gold services depend on a single device, follow Find the Gold services that depend on a single device.

Key takeaways​

Business benefits​

  • Speed: The portal order, the generator and the deployment run without manual configuration steps
  • Consistency: Every service of the same type is built from the same generator, so its configuration uses the same rules
  • Self-service: A requester orders a service from a form, without knowing which VLAN, prefix or port it needs
  • Visibility: Each change is a proposed change with a diff, and each allocated resource is linked to its service

Technical benefits​

  • Resource management: VLANs and prefixes come from resource pools, so two services cannot receive the same one
  • Version control: Every change is made on a branch and reviewed before it merges
  • Validation: Checks run on each proposed change, and Infrahub does not merge a change whose checks have failed
  • Integration: The portal, the generator and Ansible all read the same data through the Infrahub API

Next steps​

Now that you understand the user experience:

  • Explore the developer walkthrough to understand the technical implementation
  • Learn how business impact links customers and commitments to the network
  • Try creating additional service types or modifying existing ones
  • Consider how similar patterns could apply to your organization's services
